GLL 3-80 Professional

GLL 3-80 Professional
GLL 3-80 ProfessionalGLL 3-80 Professional
Code: 0 601 063 S00

Technical data

The most important data
Laser diode Line: 630 - 650 nm, < 10mW
Operating temperature -10 – 40°C
Storage temperature -20 – 70°C
Laser class 2
Working range up to 30 m
Working range with receiver up to 120 m
Working range without receiver up to 30 m
Accuracy +/- 0.3 mm/m*/** (*for the four horizontal intersection points ; **plus use-dependent deviation)
Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 4 h in 3-line mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.82 kg
Colour of laser line red
Projection 3 x 360° line
Compatible laser receivers LR 6 + 7

Advantages

3 x 360° for visibility on a new level



  • High visual clarity is provided by high-powered diodes
  • 3 x 360° lines allow for simultaneous horizontal and vertical levelling applications for highly efficient work
  • Intuitive user interface offers easy operation

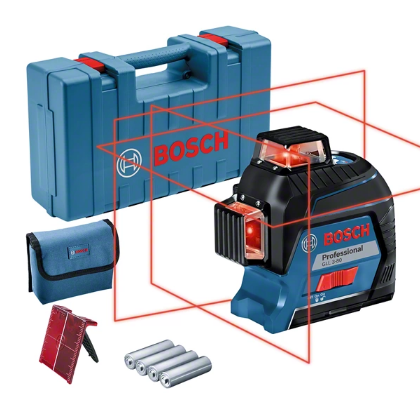

The line laser GLL 3-80 Professional projects 3 x 360° lines for next level visibility. High visual clarity is provided by high-powered diodes. This tool's 3 x 360° lines allow for simultaneous horizontal and vertical levelling applications around the entire room for highly efficient work, while the tool´s intuitive user interface offers easy operation.

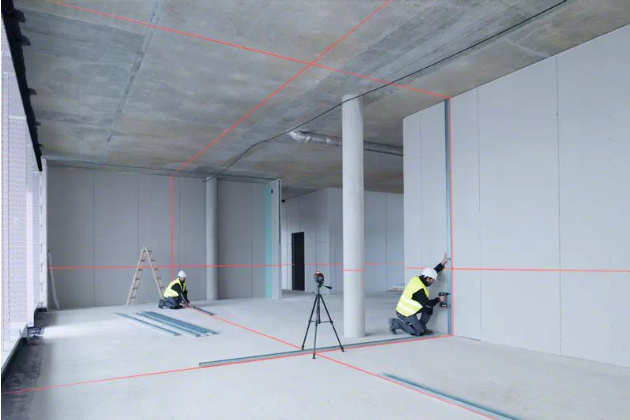

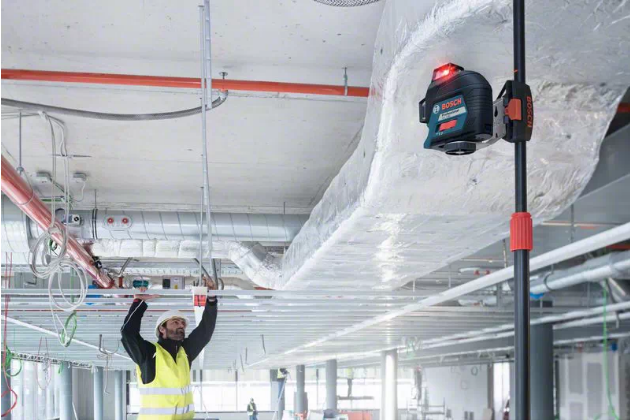

This line laser was developed for suspending drop ceilings, building floors, installing windows, mounting shelves, laying drainage pipes, building framework for drywall, and laying tiles.

The GLL 3-80 Professional is perfect for fast self-levelling and it is capable of self-levelling on non-level surfaces up to +/- 4° in less than 4 seconds with excellent precision of ± 0.3 mm/m*/**. It has a working range of up to 120 m when using the optional LR 6 or LR 7 Professional receiver. This line laser is compact, easy to handle, and extremely robust (IP54).
