GCM18V-305 GDC Professional

Code: 0 601 B43 001

Technical data

The most important data
Cutting capacity, 0°	104 x 341 mm
Cutting capacity 0° with spacer (max. vertical)	120 x 200 mm
Cutting capacity 0° with spacer (max. horizontal)	45 x 400 mm
Cutting capacity, 45° mitre	104 x 240 mm
Cutting capacity, 45° bevel	40 x 341 mm
Mitre setting	52 ° L / 60 ° R
Bevel setting	47 ° L / 47 ° R

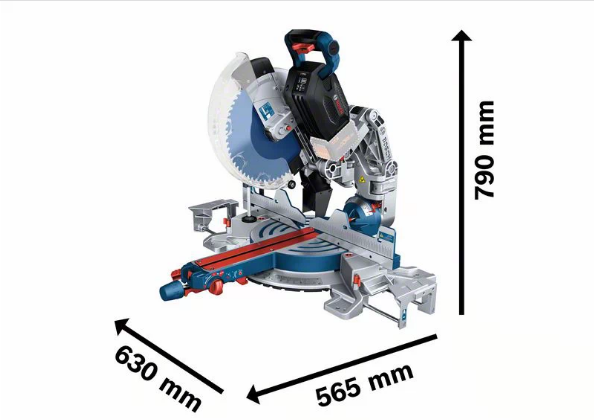

Tool dimensions (width x length x height)	565 x630 x790 mm
No-load speed	2,550 – 4,000 rpm
Saw blade diameter	305 mm
Saw blade bore diameter	30 mm
Weight	26.9 kg
Battery voltage	18 V
Packaging dimensions (width x length x height)	565 x 785 x 580 mm
