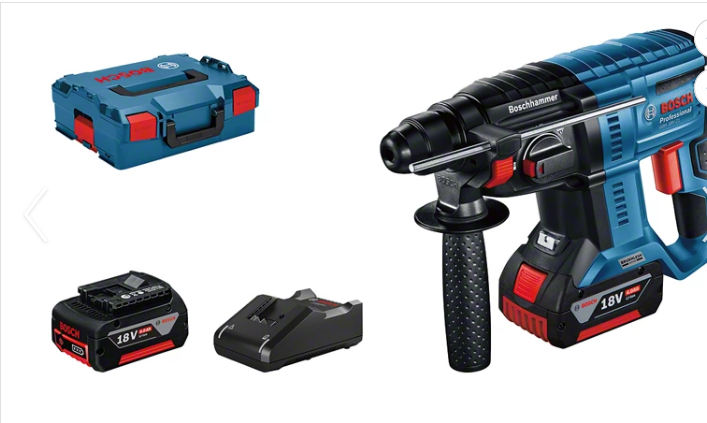

GBH 18V-21 Professional
Code: 0 611 911 102
Send inquiry
Technical data
The most important data |
|
|---|---|
| Max. impact energy | 2 J |
| Impact rate at rated speed | 0 – 5,100 bpm |
| Rated speed | 0 – 1,800 rpm |
| Battery voltage | 18 V |
| Weight excl. battery | 2.4 kg |
| Tool holder | SDS plus |
| Tool dimensions (length) | 325 mm |
| Charging time (80%/100%) approx. | 48/65 min [4.0 Ah] |
| Drilling range | |
|---|---|
| Drilling dia. in concrete with ham. dr. bits, from | 4 mm |
| Drilling dia. in concrete with ham. dr. bits, to | 21 mm |
| Drilling dia. in concrete with hammer drill bits | 4 - 21 mm |
| Opt. app. range in concrete with hammer drill bits | 6 - 10 mm |
| Max. drilling diameter in metal | 13 mm |
| Max. drilling diameter in wood | 30 mm |
Noise/vibration information
Total vibration values (vector sum of three directions):
| Sound pressure level | 90 dB(A) |
| Sound power level | 101 dB(A) |
| Uncertainty K | 3 dB |
| Hammer drilling in concrete | |
|---|---|
| Vibration emission value ah | 10 m/s² |
| Uncertainty K | 1.5 m/s² |
| Chiselling | |
|---|---|
| Vibration emission value ah | 7 m/s² |
| Uncertainty K | 1.5 m/s² |
Noise/vibration information
Total vibration values (vector sum of three directions):
| Sound pressure level | 90 dB(A) |
| Sound power level | 101 dB(A) |
| Uncertainty K | 3 dB |
| Hammer drilling in concrete | |
|---|---|
| Vibration emission value ah | 10 m/s² |
| Uncertainty K | 1.5 m/s² |
| Chiselling | |
|---|---|
| Vibration emission value ah | 7 m/s² |
| Uncertainty K | 1.5 m/s² |
