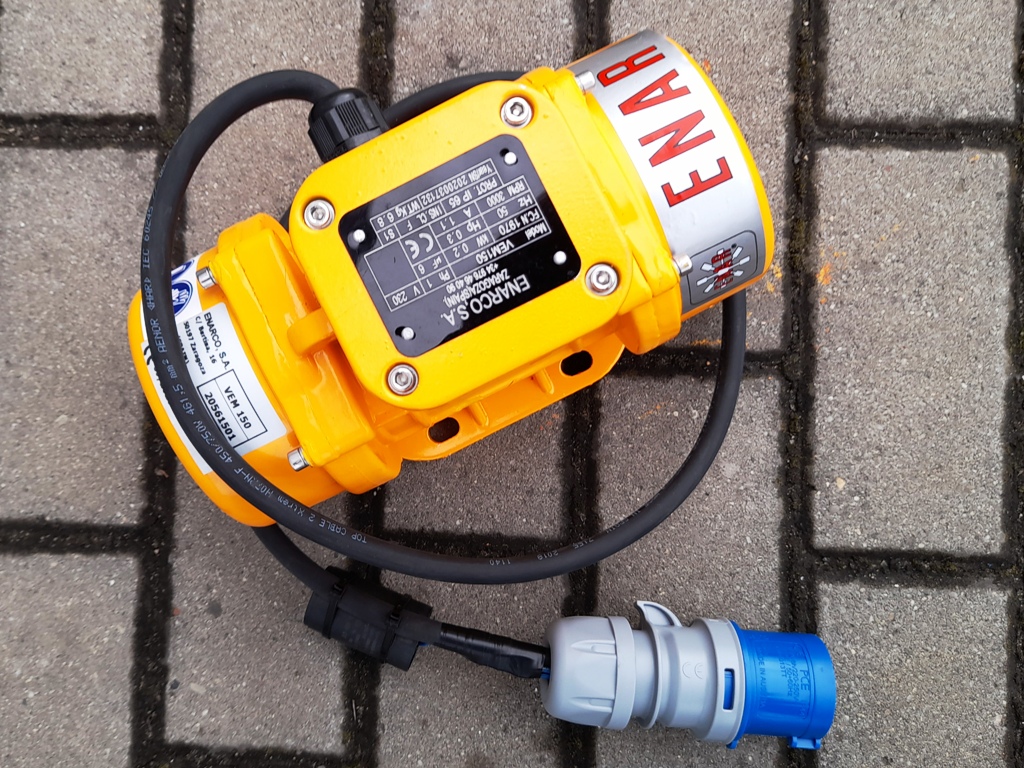

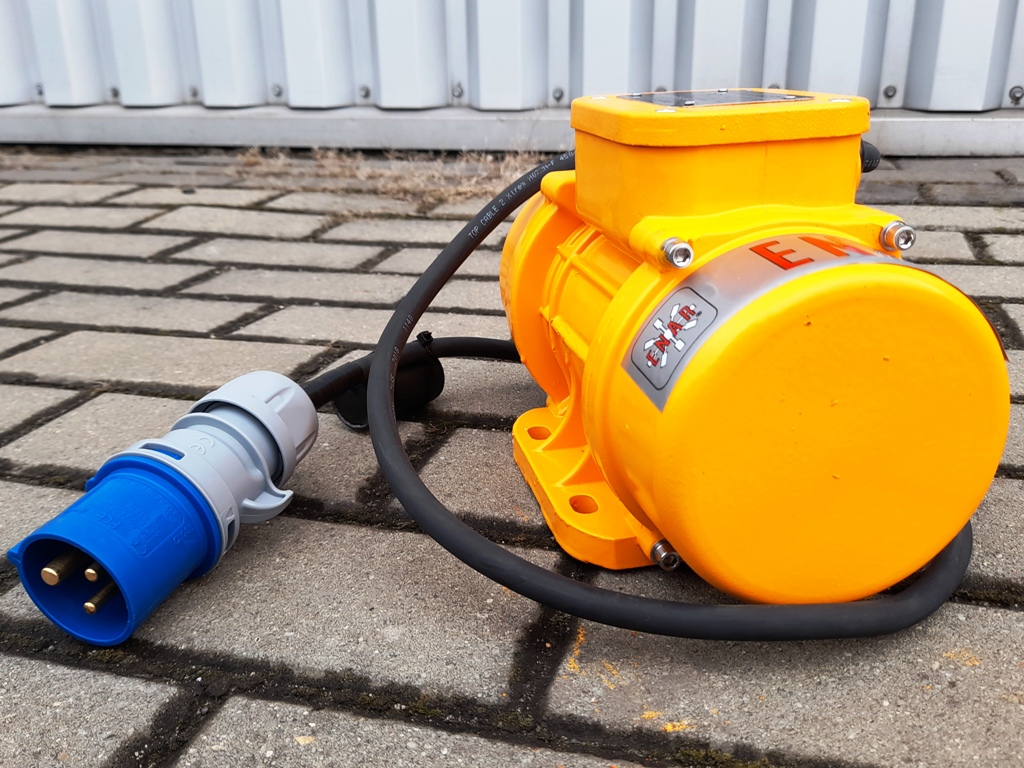

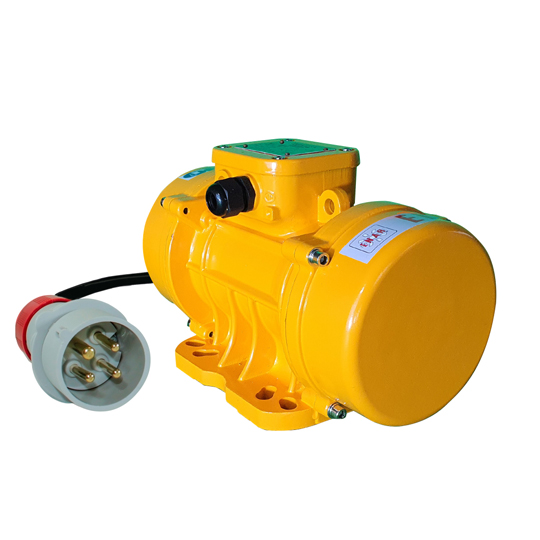

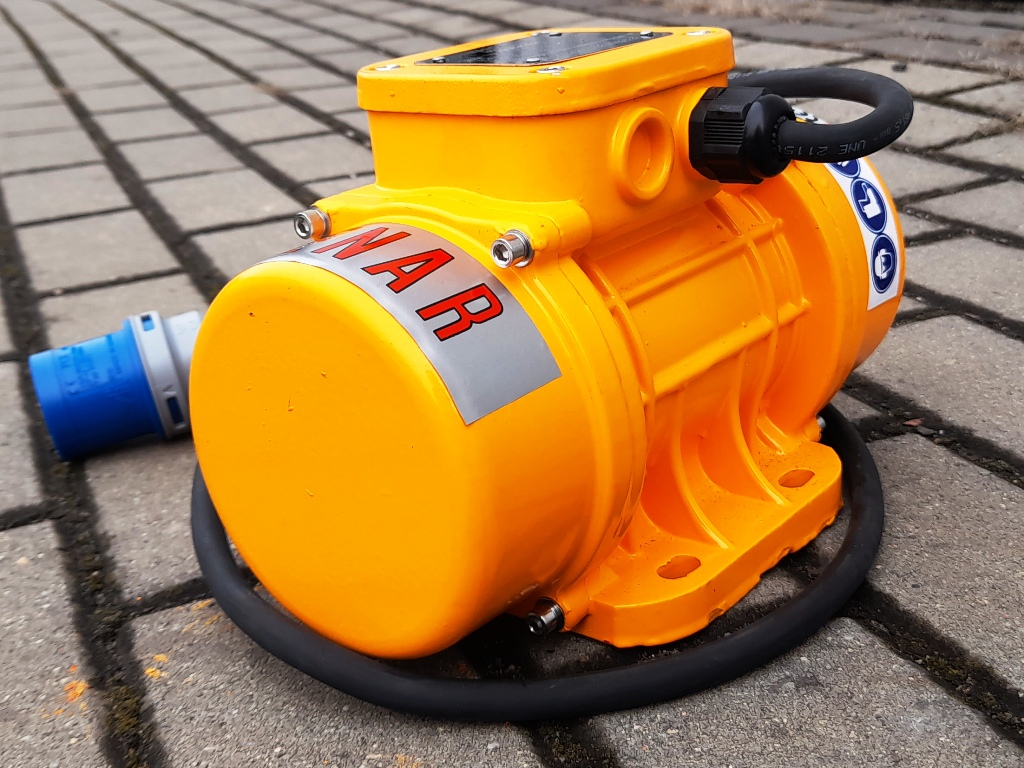

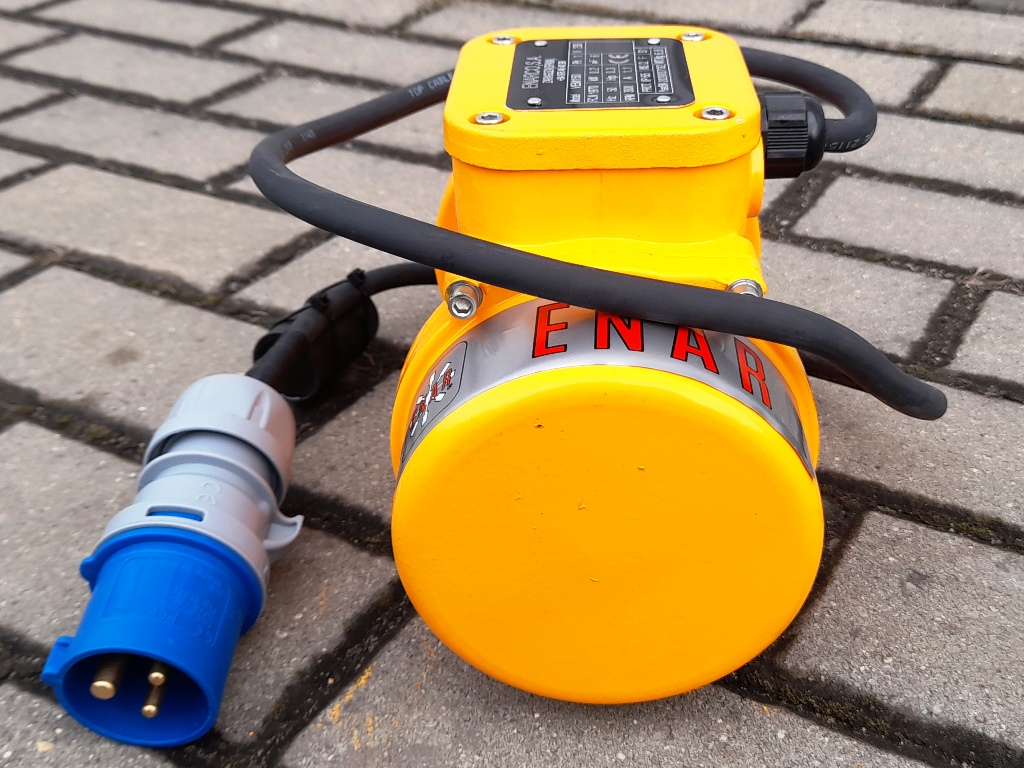

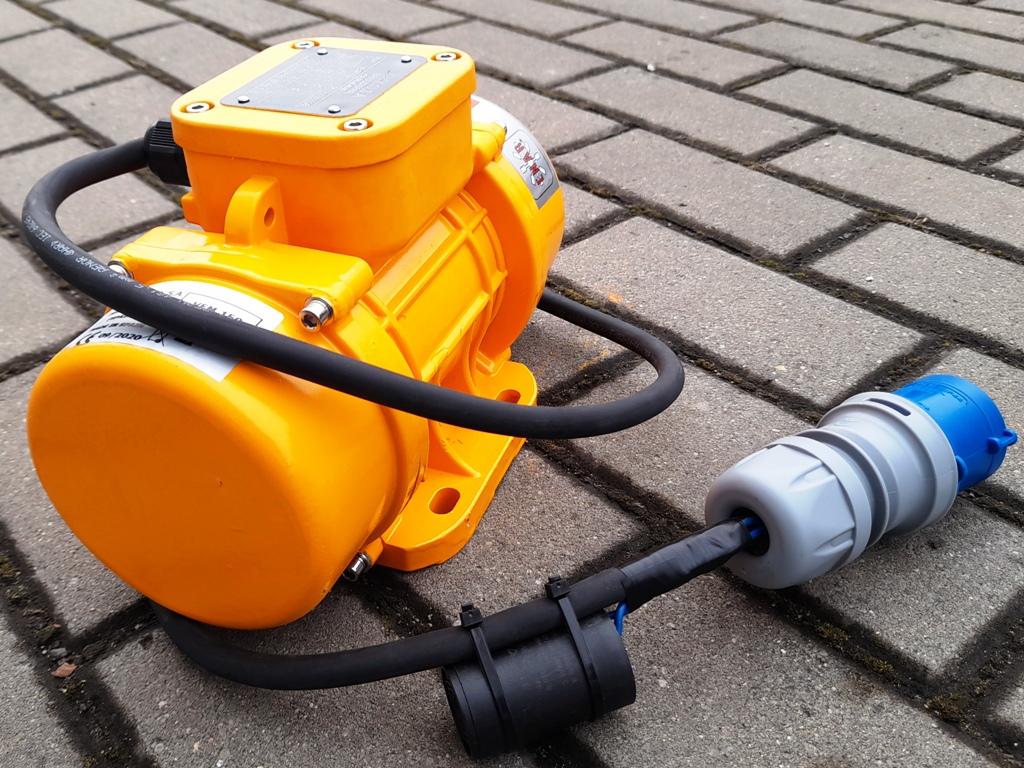

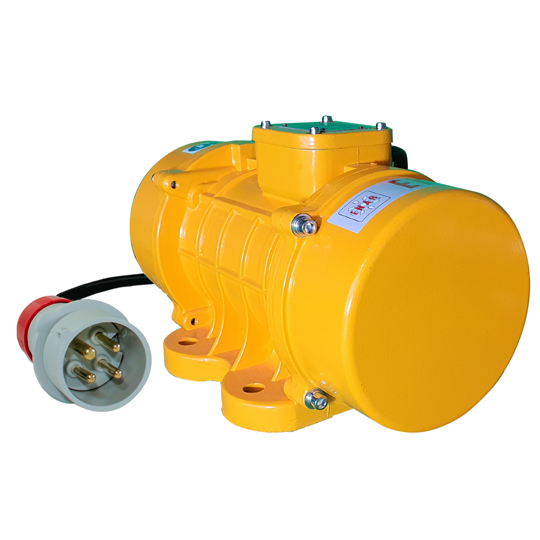

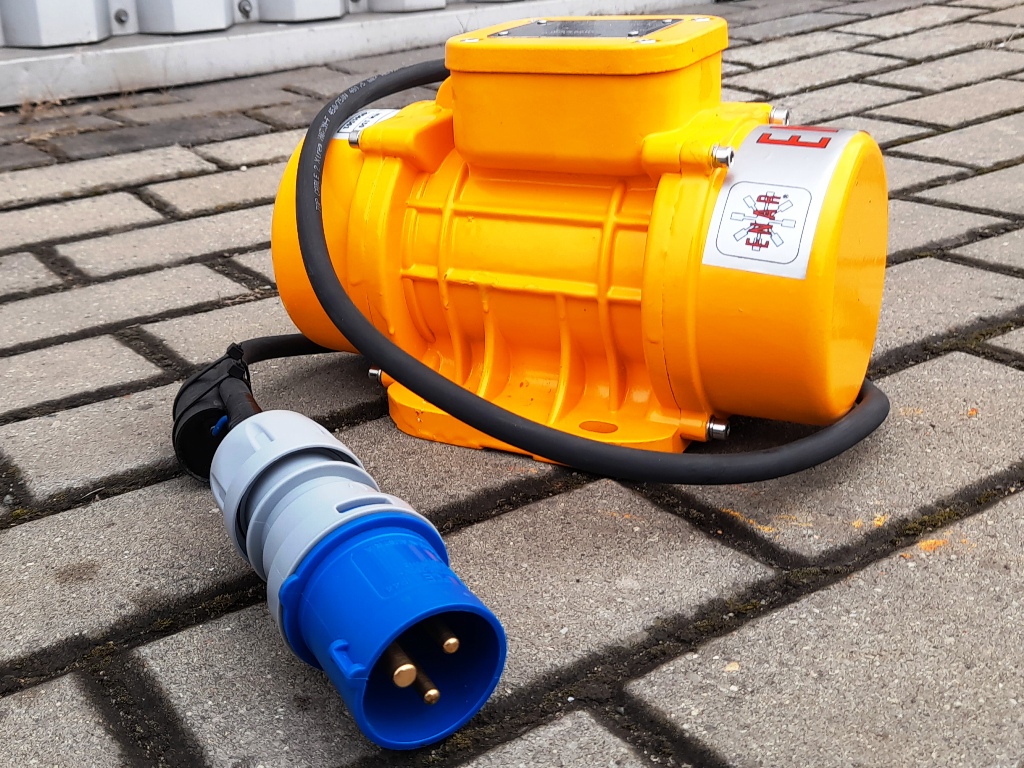

External vibrator for concrete Enar VEM 150

1-phase or 3 phase

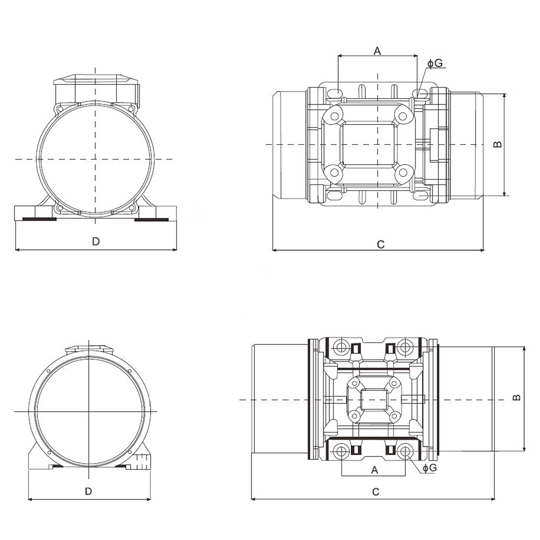

Model	CENTRIFUGAL FORCE (KG)	CONSUMPTION MAX. W.	VOLTAGE	FREQUENCY R.P.M.	DISTANCE A MM	DISTANCE B MM	DIAMETER G MM	LENGTH C MM	WIDE D MM	WEIGHT KG
VET 100	0-99	100	3~230/380V 50HZ	3.000	62-74	106	9	231	131	5,1
VET 150	0-197	200	3~230/380V 50HZ	3.000	62-74	106	9	231	131	7,3
VET 300	0-311	300	3~230/380V 50HZ	3.000	90	125	13	273	155	10,5
VET 600	0-516	500	3~230/380V 50HZ	3.000	105	140	13	362	208	16,3
VET 800	0-788	750	3~230/380V 50HZ	3.000	120	170	17	362	208	21,1
VET 1600	0-1.571	1.600	3~230/380V 50HZ	3.000	140	190	17	421	229	52,6
VEM 100	0-99	150	1~230V 50HZ	3.000	62-74	106	9	231	131	6,5
VEM 150	0-197	200	1~230V 50HZ	3.000	62-74	106	9	231	131	7,3
VEM 300	0-311	300	1~230V 50HZ	3.000	90	125	13	273	155	10,5
